Counter flange

Code	Diameter	Connection	Finish
	(mm)	(inches)
CFF095TRF008Z	95	¾"	Galvanized
CFX095TRX008G	95	¾"	Inox
CFF095TRF007Z	95	1"	Galvanized
CFF145TRF008Z	145	¾"	Galvanized
CFX145TRX008G	145	¾"	Inox
CFF145TRF007R	145	1"	Galvanized
CFX145TRX004G	145	1"	Inox
CFF260TRF001V	260	1 ¼"	Painted
CFX260TRX001G	260	1 ¼"	Inox

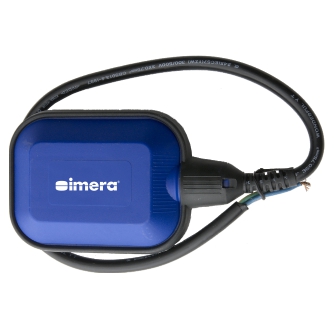

Float switch

Code	Cable length
	(m)
IGLCN005	0,5
IGLCN050	5
IGLCN100	10

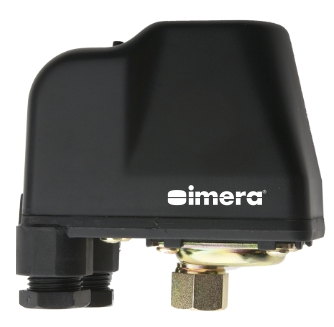

Pressure switch

Code	Pressure
	(bar)
PRITCPM5	1÷5
PRITCPM12	3÷12

Flexible hoses MF

Code	Length	Connection
	(m)	(inches)
FMFG0150	0,5	1"
FMFG0160	0,6	1"
FMFG0180	0,8	1"
FMFG01N1	1	1"

Manometer

Code	Diameter	Pressure	Type
	(mm)	(bar)
MNAR5206	50	0÷6	90°
MNAR5212	50	0÷12	90°
MNAP5206	50	0÷6	180°
MNAP5212	50	0÷12	180°

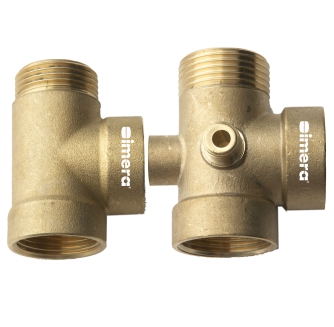

Water connection

Code	Length	Way	Connection
	(mm)		(inches)
RAC3V172	72	3	1"
RAC5V172	72	5	1"
RAC5V182	82	5	1"
RAC5V192	91	5	1"

Tie beam

Code	Model

TIR001Z	100÷500
TIR003Z	750÷5000

Precharge valve

Code

VAL003

Download PDF Catalog
