Pressure tanks with replaceable membrane 16 bar
Working temperature
  • -10°C
  • +100°C
External finish color
  • RAL 5015
Rubber membrane
  • EPDM

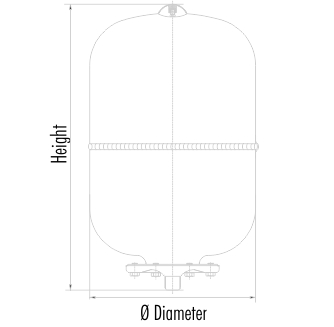

  • Technical drawing
  • View
  • All our vessels are manufactured, tested and checked according to current European regulations

ModelHeightDiameterMaximum
working pressure
Standard
precharge pressure
Connection
(mm)(mm)(bar)(bar)(inches)
B8310200162¾ ”
B18430270162¾”
B244832701621”
B354403651621”
