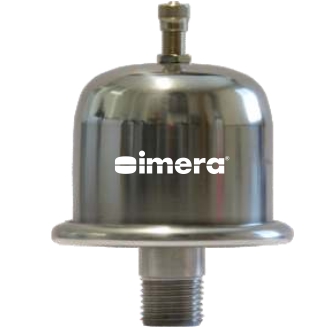

Water shock absorber device

Working temperature

-10°C
+100°C

Finish

INOX
AISI 304

Rubber membrane

EPDM

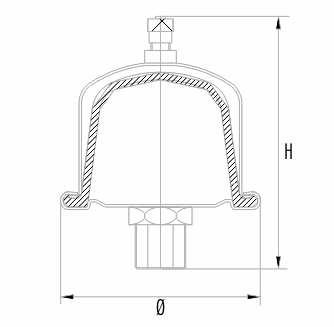

Technical drawing
View
All our vessels are manufactured, tested and checked according to current European regulations

Model	Height	Diameter	Maximum working pressure	Standard precharge pressure	Connection
	(mm)	(mm)	(bar)	(bar)	(inches)
SA016	100	79	15	3.5	½"
SA050	156	95	10	3.5	½"
SA100	190	116	10	3.5	½"
SA200	220	135	10	3.5	½"
